HCW High Capacity Swing Barrier Turnstile with 1S Open/Close Time and 4 Million Times Service Life for Pedestrian Access Control

Place of Origin	China
পরিচিতিমুলক নাম	Hongchuangwei
সাক্ষ্যদান	CE/ISO 9001
Model Number	CW401
Minimum Order Quantity	2
মূল্য	আলোচনাযোগ্য
Packaging Details	wood cases
Delivery Time	4-7 working days
Payment Terms	T/T
Supply Ability	1000 pieces weekly

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

Wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

যদি আপনার কোন উদ্বেগ থাকে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

পণ্যের বিবরণ

Passing speed	30-40person/min	Power supply	AC220V±10%,50±10Hz
Material	SUS 304	working environment	-25℃ to 70℃
Dimension	1200 * 280 * 990mm	open/ close time	1S
Relative humidity	≤90% no condensation	Normal service life	4 million times
বিশেষভাবে তুলে ধরা	High Capacity Swing Barrier Turnstile , 1S Open/Close Time Pedestrian Swing Gate , 4 Million Times Service Life Access Control Turnstile

একটি বার্তা রেখে যান

পণ্যের বর্ণনা

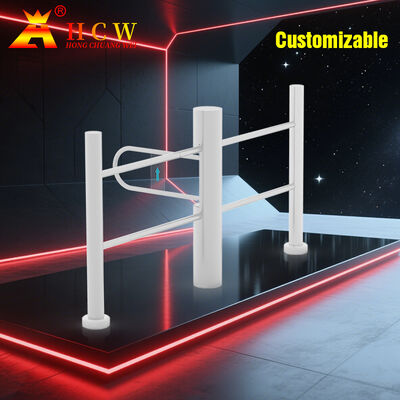

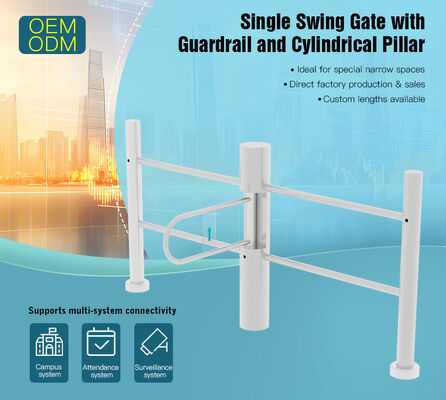

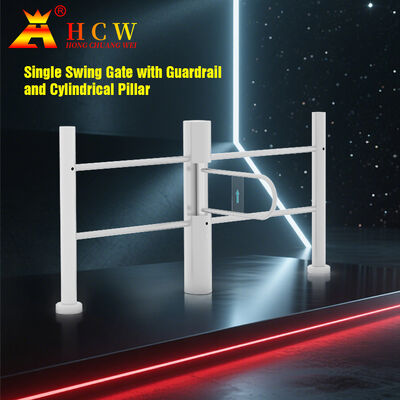

HCW High Capacity Swing Barrier Turnstile

Bridge type swing gate single/two-way pedestrian swing turnstile with fast open/close time and stable performance, allowing up to 40 persons per minute.

Key Features

Constructed with thickened steel, customizable design with quality assurance - durable, waterproof and rustproof

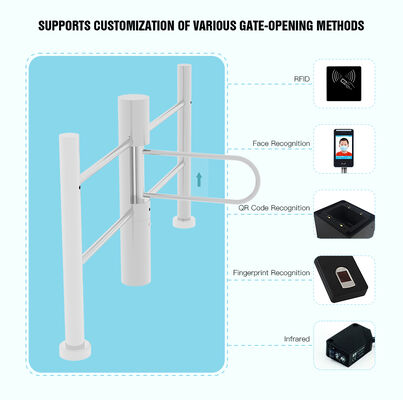

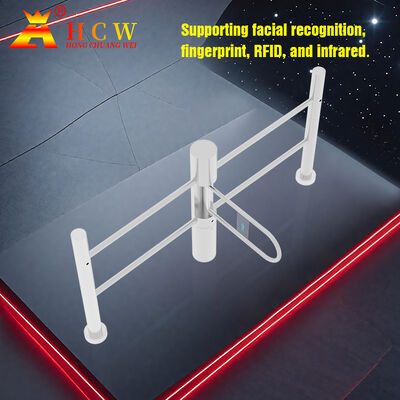

Supports multiple recognition methods: face recognition, fingerprint recognition, QR code scanning, document recognition
Anti-collision function with automatic swing arm locking when no opening signal is detected
Fault prompt and self-check system for easier maintenance
Brushless motor for extended operational life
Configurable for one-way or two-way traffic flow
Ideal for smart community system solutions

Face Recognition Option

Enhances security and prevents identity impersonation through face collection, detection, feature extraction and comparison.

Technical Specifications

Product Model	CW401
Voltage	AC220V±10%, 50HZ±10% HZ
Working Temperature	-25℃ to 70℃
Relative Humidity	≤90% (no condensation)
Motor Type	Brushless Motor
Rated Power	40W
Input Control Signal	Switch value (standard configuration does not include RS232, RS485)
Throughput Speed	30-40 persons/minute
Infrared Beam	1 Pair
Trouble-free Operations	2 million times
Average Lifespan	3 million times

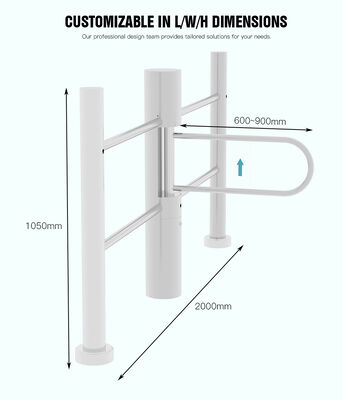

Channel Width	600mm-1600mm
Door Wing Material	￠25mm Stainless steel
Product Size	￠200mm × height 1050mm

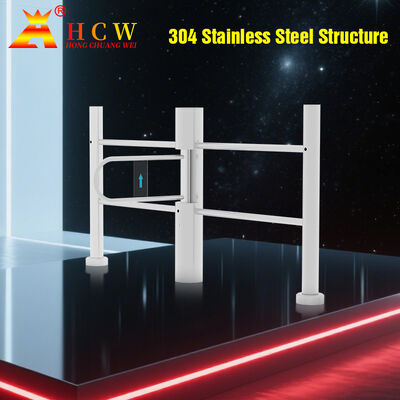

Channel Frame	National standard 1.5mm 304 stainless steel
Package Weight	Approx. 25 KG (single side road)
